How to Measure Picture Frame Moulding
(Without Losing Your Mind)
The only guide you’ll ever need – whether you’re framing a masterpiece or installing gorgeous wall moulding boxes. Step-by-step formulas, expert tips, and a handy cheat sheet included.
The Story Behind the Confusion
You’ve got a gorgeous piece of art, a roll of moulding, and a spirit level that somehow always ends up sideways. You’re feeling confident. You’re feeling capable. You’re basically Chip Gaines in an apron.
Then you search “how to measure picture frame moulding” and suddenly drown in terms like rabbet depth, sight size, face width, and miter allowance… and the Saturday energy starts leaking out fast. 🎈
Been there? Me too. Which is exactly why I wrote this guide to make measuring picture frame moulding feel less like a math exam and more like a fun little puzzle you can totally solve before lunch.

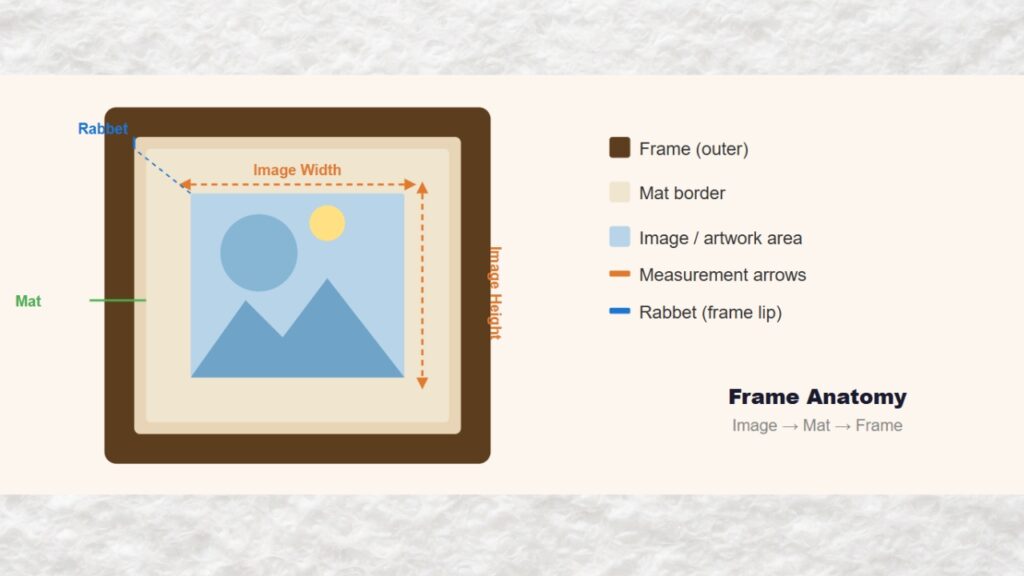

Moulding Anatomy 101 – Know Your Parts
Before throwing numbers around, let’s get familiar with the actual piece of moulding. This takes two minutes and will save you a huge headache later when calculating your picture frame moulding measurements.
| Term | What It Means | Why It Matters for Measuring |
|---|---|---|
| Face Width / Profile Width | The total width of the moulding as seen from the front | Used to calculate miter allowances – crucial for accurate cuts |
| Rabbet | A recessed ledge on the back that holds glass, mat & art | Your art rests here. Typically ~¼” deep × ¼” wide |
| Sight Size / Opening | The inner visible opening of the finished frame | Must match (or just exceed) your artwork size |
| Outside Dimensions | The full outer size of the completed frame | Important for wall placement and display planning |
| Allowance | A small extra gap (usually ⅛”) for art to sit comfortably | Without this, your art won’t fit – every professional framer builds this in |
Pro Tip To find the face width of any moulding, flip it upside-down and measure across the flat back. Simple and accurate!
The 2 Types of Picture Frame Moulding Measuring
This is the part where I save you 40 minutes of confusion. Depending on what you’re building, the moulding measuring process is completely different:
| Type | What It Is | What You’re Measuring For |
|---|---|---|
| 🖼️ Type 1: Artwork Frames | A four-sided frame that holds a painting, print, photo, or canvas | How much moulding to buy & cut to frame a specific piece of art |
| 🏠 Type 2: Wall Moulding Boxes | Decorative rectangular trim boxes applied directly to walls | How to plan, space, and measure moulding for a full wall panel installation |
Both use moulding. Both involve measuring. But the math and the approach are entirely different. Let’s tackle them one at a time.
How to Measure Moulding for Artwork Frames
You’ve got a beautiful 11×14″ watercolor print and you want to frame it yourself. Here is your exact game plan for measuring picture frame moulding accurately.
Step 1: Measure Your Artwork – Not the Frame
This sounds obvious, but so many people measure the wrong thing! Lay your artwork flat and measure its actual width and height in inches. Include any mat board if you’re using one – measure the mat’s outer edge, not the window opening.
Don’t Skip This! Always measure the item going inside the frame, not a pre-existing frame or a store-bought size. Art prints are often slightly off from their advertised dimensions.
Step 2: Add the Critical ⅛ Inch Allowance
Here’s the most common rookie mistake: if your frame opening is the exact size of your artwork, it won’t fit. Add ⅛” (0.125″) to each dimension – width and height. This gives you 1/16″ of clearance on each side. Every professional framer builds this allowance in. Your artwork slides in happily rather than getting jammed.
🔢 The Picture Frame Moulding Allowance Formula
Rabbet (Frame Opening) Height = Artwork Height + ⅛”
(For canvas/floater frames: add your desired floating gap – usually ¼”–½” – instead of ⅛”)
Step 3: Understand Inside vs. Outside Measurements
When you cut moulding at 45°, the inside edge of each piece is your artwork opening size (rabbet dimension). The outside edge is longer because of the miter angle. Always work from the inside (rabbet) measurement when cutting.
Measure artwork width and height
Use a steel ruler for precision. Measure twice – once is just optimism. 😄
Add ⅛” to each dimension
These become your rabbet dimensions – the inside opening sizes of your finished frame.
Add up all four sides
(Width + Width + Height + Height) using the adjusted rabbet dimensions from Step 2.
Account for miter waste
Multiply the face width of your moulding by 8, then add to your total. This covers material lost at each of the 8 miter-cut points.
Add a buffer for mistakes
Round up generously. Add at least 10–15% extra. Mistakes happen to everyone – even the pros.
🔢 Total Moulding Needed Formula (Artwork Frame)
RW = Artwork Width + ⅛”
RH = Artwork Height + ⅛”
Step 2 – Sum of All Four Sides:
Perimeter = (RW × 2) + (RH × 2)
Step 3 – Add Miter Allowance:
Miter Allowance = Face Width × 8
Step 4 – Total Needed:
Total = Perimeter + Miter Allowance
RW = 11.125″ | RH = 14.125″
Perimeter = (11.125 × 2) + (14.125 × 2) = 50.5″
Miter Allowance = 1.25 × 8 = 10″
Total = 50.5″ + 10″ = 60.5″ → buy at least 6 feet of moulding 🎉
Making Multiple Frames? Repeat the perimeter and miter steps for each frame, then add all totals before buying. Bulk purchasing almost always saves money – and a second trip to the store. 🛒
How to Measure Wall Moulding Boxes (The HGTV Look)
You’ve seen those elegant rectangular panels that make a room look like it cost three times more. That’s wall picture frame moulding, and measuring for it is its own adventure. Let’s plan it like the interior designer you secretly are. 💅
Step 1: Measure Your Wall Completely
Measure the total width and height of your wall in inches. Write it down – this is your canvas. Account for: door trim, window casings, baseboard, crown moulding, electrical outlets, light switches, and air vents. These are obstacles to design around.
Important! Walls are almost never perfectly square. A laser level is your best friend here. Don’t eyeball it – the installed moulding will expose any unevenness immediately. 👀
Step 2: Choose Your Spacing – The Designer’s Rule
The golden rule of wall moulding box spacing that professional designers use: maintain consistent spacing between all boxes, and between boxes and existing trim.
| Spacing Scenario | Recommended Gap |
|---|---|
| Between moulding boxes | 3–4.5 inches (3″ is classic; 4.5″ feels more modern and airy) |
| Box to ceiling or crown moulding | 2–4 inches |
| Box to baseboard | 2–4 inches |
| Box to door trim | 2–3 inches |
| Box to wall corner | 3 inches minimum |
Step 3: Calculate How Many Boxes Fit
Here’s a straightforward formula to calculate the number and width of wall moulding boxes that fit your wall:
📐 Wall Moulding Box Fitting Formula
Number of Boxes = Round down to nearest whole number of:
(Usable Width + Gap) ÷ (Box Width + Gap)
Box Width = (Usable Width − ((N−1) × Gap)) ÷ N
Usable Width = 140 − (2 × 4.5) = 131″
Box Width = (131 − (2 × 4.5)) ÷ 3 = 122 ÷ 3 ≈ 40.6″ per box
Designer Trick: If you have a focal wall (fireplace, bed headboard), center your boxes around it first – then work outward. Symmetry from the center looks intentional; symmetry from a corner can look accidental.
Step 4: Determine Box Heights
For walls with standard 8–9 ft ceilings, moulding boxes 32–38 inches tall (measured from the floor to the top of the box) sit in the visual “sweet spot.” For lower ceilings, go shorter. For tall ceilings, go taller or consider double-stacked boxes.
Step 5: Mock Up With Painters Tape First
This is the single most valuable tip for wall moulding measurement: before cutting a single piece, outline your boxes on the wall with blue painters tape. Live with it for a day. Walk past it. Look at it in different lighting. Move it if needed. Tape is cheap; re-cutting moulding is not. 😅
Step 6: Measure Each Piece for Your Cut List
Once your tape layout is confirmed, measure each individual piece. For every box you need: 2 horizontal pieces (top and bottom) + 2 vertical pieces (left and right sides).
Measure the outside dimensions of each box
The outer edges of your tape outline = the outer edge of your finished moulding pieces.
Write down every piece as a cut list
Example: “Box A: 2× 41″ horizontal, 2× 36″ vertical.” Group identical cuts together to minimize waste.
Add all lengths and convert to feet
Total all inches, divide by 12, round up to the nearest foot. Add 10% for an error allowance.
Plan cuts based on 8-foot stick lengths
Most trim moulding comes in 8-foot lengths. Pieces 4 feet or less can often be paired efficiently from one 8-foot strip.
Calculating Total Moulding Footage to Buy
Whether framing art or installing wall boxes, the final step before heading to the hardware store is calculating exactly how much material to purchase.
Add up all linear inches of moulding needed
Write down every piece from your cut list and sum them in inches.
Divide by 12 to convert to feet
Hardware stores sell by the foot or in pre-cut 8-foot bundles.
Add a 10–15% buffer
Mistakes happen. Grain direction matters. Sometimes a miter is slightly off. Budget for it now – not after you run short.
Round up to full 8-foot sticks
One extra stick is almost always cheaper than a second trip to the store with mismatched moulding.
Smart Buying Tip: If making 2+ frames with the same moulding, buy all material at once – even for different projects. Wood stain dye lots vary between batches, and purchasing together ensures consistency throughout your home.
The Miter Cut Allowance – Why You Must Account for Material Loss
Here’s what surprises almost every first-timer: when you cut moulding at a 45° angle, you lose material. The inside edge of the cut piece ends up shorter than the outside edge – by exactly the width of the moulding’s face.
Think of it this way: if your moulding is 1¾” wide and you make a miter cut at both ends of a 12″ piece, the inside measurement is actually around 8.5″ – not 12″. That’s almost 3.5 inches of “lost” material per piece. Surprising, right? 😲
The Simple Miter Waste Rule:
For every frame there are 4 corners × 2 miter cuts = 8 total miters. Each miter consumes material equal to the face width of the moulding. So:
✂️ Miter Allowance Formula
1.5″ wide moulding: 1.5″ × 8 = 12″ of miter waste
2″ wide moulding: 2″ × 8 = 16″ of miter waste
This is why wider, chunkier frame moulding requires more material per frame. Those bold, chunky profiles aren’t just heavy – they’re material-hungry too! 🍔
Wall moulding boxes use miter cuts at each corner too. When cutting wall trim pieces, always add the face width to each mitered end. If both ends of a piece are mitered, add (face width × 2) to the cut length before sawing.
7 Common Measuring Mistakes (And How to Dodge Them)
These are the most frequent picture frame moulding measurement errors DIYers make. Learn from them before cutting a single piece. 😂
Measuring the frame instead of the artwork ❌
Always measure the art (or mat). Your frame should be built around it – not the other way around.
Forgetting the ⅛” allowance ❌
Without it, your art won’t fit – or fits so tightly it warps. Always add the allowance. Every single time.
Not accounting for miter waste ❌
This is the #1 reason people run short on moulding. Always do the Face Width × 8 calculation before purchasing.
Assuming walls are square and level ❌
They’re not. They never are. Use a laser level – not faith. 🙏
Not doing a tape mock-up on the wall ❌
Sketch your wall moulding layout in painters tape before any cutting. It takes 20 minutes and saves hours of regret.
Buying the exact amount with no buffer ❌
One bad cut and you’re driving back to the store. Always buy 10–15% more than you think you need.
Planning boxes over outlets or switches ❌
Measure and mark every electrical plate location before finalizing your wall layout. Routing a box around a switch mid-install is a painful experience. 😩
📋 Picture Frame Moulding Measurement Cheat Sheet
Frequently Asked Questions About Measuring Picture Frame Moulding
Sight size is the inner opening of your frame – the portion of artwork that’s actually visible. Outside size is the full outer dimensions of the finished frame. For 1.5″ wide moulding framing an 8×10″ print, outside dimensions would be approximately 11×13″ (adding 1.5″ on each side).
Canvas frames (floater frames or deep-rabbet frames) need extra rabbet depth to accommodate canvas thickness – typically ¾”–1.5″ deep. For floater frames, add your desired floating gap (usually ¼”–½”) to each dimension instead of the ⅛” allowance. Always confirm that your moulding’s rabbet depth exceeds the canvas stretcher bar thickness.
Yes! PVC (polyurethane) moulding can be cut with a fine-tooth hand saw and a basic miter box – no power tools required. Many DIYers also order pre-cut pieces from framing supply shops. A cordless brad nailer provides the cleanest installation results.
For a 12-foot (144″) wall, 3 boxes with 3–4.5″ spacing between them typically creates a beautifully balanced look. If there’s a centered focal point like a fireplace, consider 2 wider boxes flanking it for a more dramatic, symmetrical effect.
Completely normal! Small gaps at corners or wall edges can be filled with paintable caulk or spackling compound. Prime and paint after installation – caulk plus paint makes mistakes invisible. Professional installers use this technique on every single project. 🎨
For wall moulding boxes, always measure to the outside of the miter cut – this represents the outer edge of your finished box. The inside (shorter) edge of each cut piece will be slightly smaller due to the 45° miter angle.
